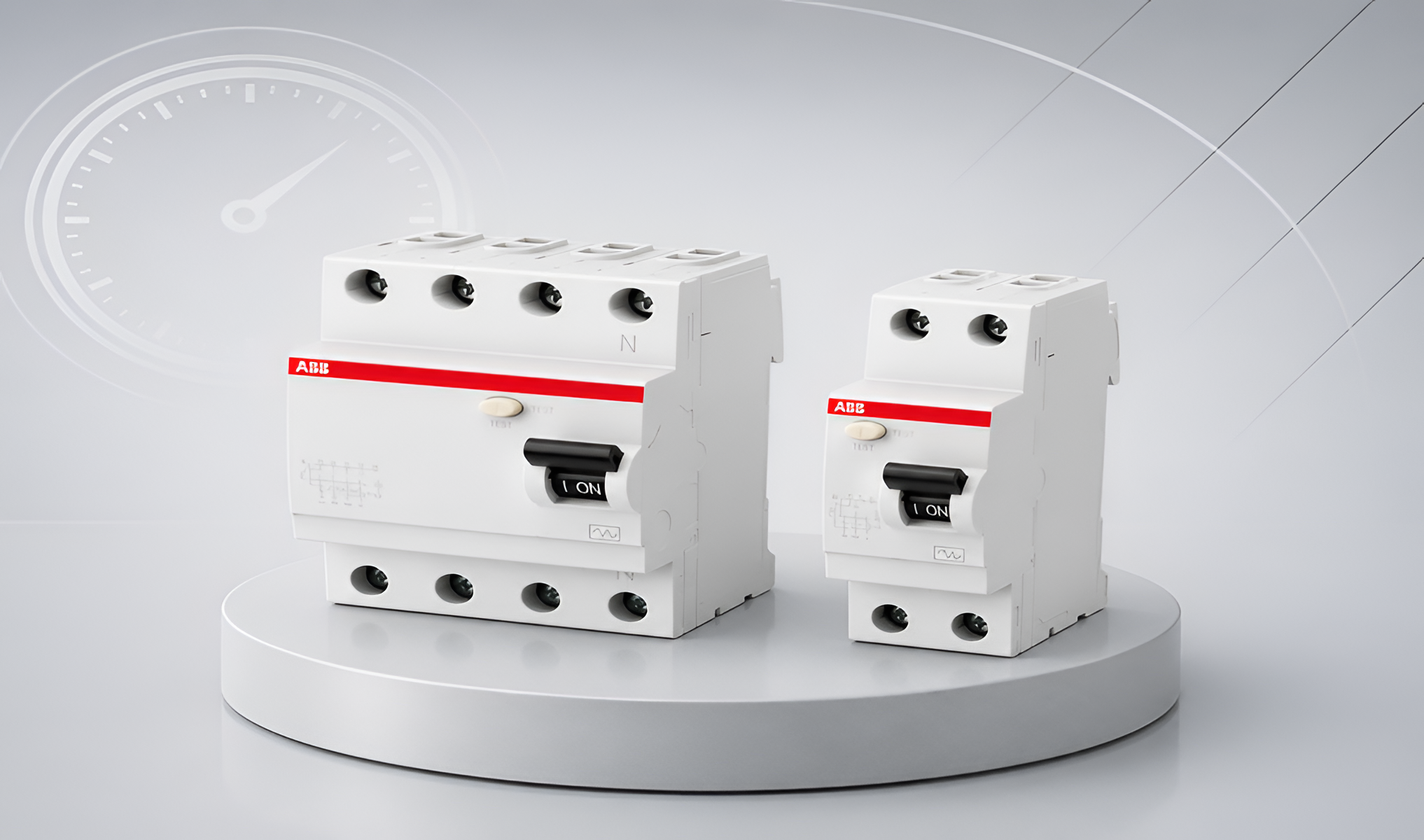

ABB FB200 Series RCCB

FB 200 Series is a compact and reliable range of Residual Current Circuit Breakers (RCCBs) designed to provide effective protection against earth leakage currents and electric shock in residential, commercial, and light industrial electrical installations.

Built with advanced residual current sensing technology and premium-quality components, the FB 200 Series delivers high sensitivity, fast fault detection, and dependable long-term performance. Its compact DIN rail mounting design enables quick installation in distribution boards, while multiple pole configurations and current ratings provide flexibility to suit a wide range of electrical applications.

Widely used in residential buildings, commercial complexes, offices, schools, hospitals, retail spaces, and light industrial facilities, the ABB FB 200 Series offers reliable earth leakage protection, enhanced electrical safety, and improved system reliability, making it an ideal solution for modern low-voltage power distribution systems.

Send Enquiry

FB202 AC-25/0.03

ABB FB202 AC-25/0.03 is a 2 Pole RCCB designed for reliable earth leakage protection.

Specifications

Product Model	FB202 AC-25/0.03
Brand	ABB
Type	RCCB (Residual Current Circuit Breaker)
Poles	2 Pole (2P)
Rated Current	25A
Sensitivity	30mA
Residual Current Type	AC Type
Rated Voltage	240V AC
Short Circuit Capacity	10kA
Mounting	DIN Rail
Standards	IEC 61008 / IS 12640-1
Application	Residential, Commercial & Industrial Protection

FB204 AC-25/0.03

4-pole RCCB for reliable three-phase earth leakage protection.

Specifications

Product Model	FB204 AC-25/0.03
Brand	ABB
Type	RCCB (Residual Current Circuit Breaker)
Poles	4 Pole (4P)
Rated Current	25A
Sensitivity	30mA
Residual Current Type	AC Type
Rated Voltage	415V AC
Short Circuit Capacity	10kA
Mounting	DIN Rail
Standards	IEC 61008 / IS 12640-1
Application	Residential, Commercial & Industrial Protection
